How Does a Laser Printer Fuse Toner to Paper?
A laser printer fuses toner to paper by using a fuser unit that applies heat and pressure. This melts the toner powder and bonds it to the page, creating a permanent print. The process is fast and reliable, which is why laser printers are so common in homes and offices.
We found that the fuser unit is the heart of this process. It typically consists of a heated roller and a pressure roller that work together. The toner particles are electrically attracted to the paper first, then the fuser melts and sets them in place. This method ensures your documents are durable and don’t smudge easily.
- A laser printer uses a fuser unit to melt toner onto paper.
- Heat and pressure are applied to bond the toner permanently.
- The process involves an electric charge, a laser drum, and the fuser.
- This method creates sharp, smudge-resistant prints.
- The fuser is a key component for the printer’s long-term performance.
Below, we walk through the step-by-step process so you can understand exactly how it works. Let’s break down the science behind your printer’s crisp pages.

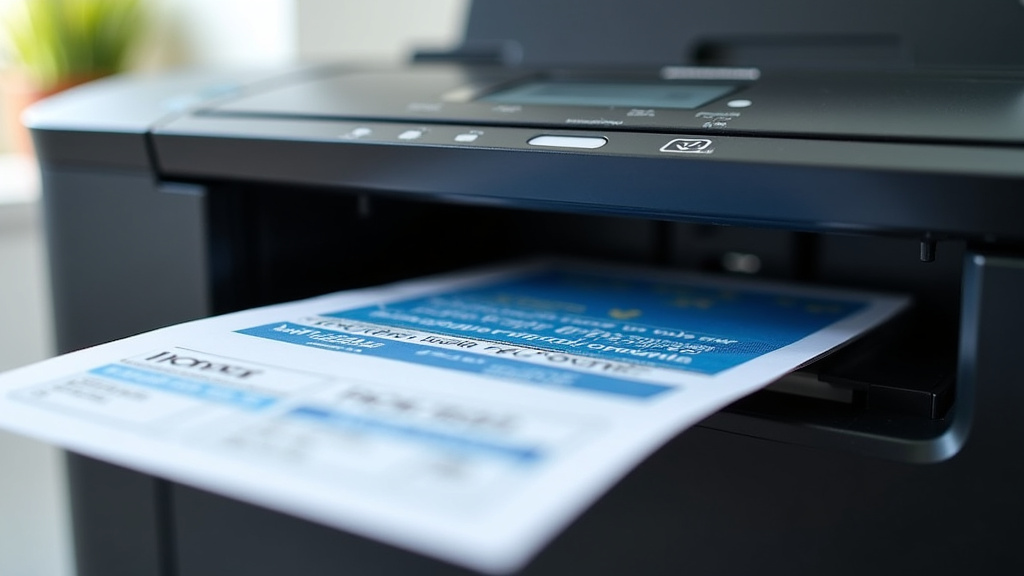

The Fusing Process: From Powder to Permanent Print
Let’s walk through what happens inside your laser printer, step by step. Imagine you’re watching a microscopic magic show where powder becomes a crisp, permanent image. The journey starts before the toner even touches the paper, but the **fusing stage** is the grand finale that makes it all stick.
You’ll see how heat and pressure work together in a precise dance. This is what separates a smudgy mess from a durable document you can file away or hand to a client.
The Paper’s Journey to the Fuser
The toner doesn’t just magically appear on your page. It goes through a carefully choreographed process first. Understanding this sets the stage for why the fuser’s job is so critical.
Step 1: Charging the Imaging Drum
Inside your printer is a large, photosensitive cylinder called the **imaging drum**. It begins with a uniform positive electrical charge, like a blank canvas waiting for a drawing. A laser beam then traces the image of your document onto this drum, discharging specific areas. These discharged spots become negatively charged, forming an invisible electrical blueprint of your page.
Step 2: Applying the Toner Powder
The toner itself consists of tiny plastic and iron oxide particles. The developer roller inside the toner cartridge applies a negative charge to this powder. Because opposites attract, the **toner jumps only to the negatively charged areas** on the imaging drum that the laser just created. It’s like iron filings jumping to a magnet, but on a microscopic scale. Now you have a drum coated in toner, forming your actual image.
Step 3: Transferring the Image to Paper
A sheet of paper is fed from the tray and given a very strong positive electrical charge by the **transfer roller**. As it passes under the imaging drum, this powerful charge rips the toner particles off the drum and pulls them onto the paper’s surface. At this point, the image is on your page, but it’s just loose powder sitting on top. One bump, and it could smudge or fall off.
Inside the Fuser Unit: Where Heat Meets Pressure
This is where the permanent transformation happens. The fuser unit is typically located near the exit tray of your printer. It’s a heavy-duty assembly that you shouldn’t touch when the printer is warm.
The unit consists of two key rollers that form a **high-pressure sandwich** for your paper to pass through.
The Heat Roller (or Fuser Film)
The top roller is the **heat source**. In most modern printers, it’s a thin, hollow metal sleeve or a film-covered roller with a high-powered internal heating lamp. It gets extremely hot, often between 350°F and 450°F (175°C to 230°C). The exact temperature is controlled by a thermostat. This heat is essential because toner is made of thermoplastic—a type of plastic that melts when heated.
We found that this roller must reach its target temperature quickly and maintain it consistently. If it’s too cool, the toner won’t melt properly. If it’s too hot, it can damage the paper or cause toner to smear. The printer’s control board constantly monitors this.
The Pressure Roller
Below the heat roller sits the **pressure roller**. This roller is usually made of a rubber-like material and is spring-loaded. Its sole job is to press the paper firmly against the hot roller above it. Without this pressure, the melting toner wouldn’t be forced into the paper’s fibers effectively.
Think of it like making a grilled cheese sandwich. The heat melts the cheese, but you need the press of the spatula to make it stick to the bread. The pressure roller provides that essential “press.”
What Happens During Fusing
As your paper with the loose toner image enters this unit:
- Heat Transfer: The heat roller transfers intense thermal energy to the toner particles.
- Plastic Melting: The plastic components of the toner reach their melting point and become a sticky liquid.
- Pressure Bonding: The pressure roller forces this molten toner deep into the microscopic valleys and fibers of the paper.
- Cooling & Hardening: As the paper exits the fuser and hits the cool air, the toner rapidly cools and solidifies. It’s now permanently fused to the page.
This entire process happens in a fraction of a second. That’s why your pages come out warm to the touch. The fuser is literally baking the image onto the paper.
Why Fuser Technology Matters for Print Quality
The quality of the fuser directly impacts your documents. A malfunctioning fuser is one of the most common reasons for poor print results. Here’s what a good fuser ensures.
| Fuser Function | Result on Your Page |
|---|---|
| Proper Heat Application | Full, consistent color and deep black text. No gray or faded areas. |
| Correct Pressure | Toner bonds completely. No powdery residue that rubs off on your hands. |
| Even Temperature Distribution | Prints that are perfect from the top margin to the bottom. No partial smudges. |
| Smooth Paper Path | No wrinkling, creasing, or jamming as the page exits. |
Materials and Durability
The toner fusing process creates prints that are highly resistant to fading and smudging. Many studies, including those from laser printer manufacturers, note that prints can last for decades when stored properly. The plastic-based toner is essentially laminated onto the paper by the fuser. This is why laser prints are preferred for important documents like contracts and reports (Xerox). They stand up to handling and light exposure far better than most inkjet prints.
Common Fuser Problems and What They Mean
If you’ve ever seen a page with toner that wipes off with a finger, or one covered in strange lines and wrinkles, the fuser is usually the culprit. Let’s look at typical symptoms.
Toner That Smudges or Rubs Off
This is the classic sign of **inadequate fusing**. The toner never reached its proper melting point or didn’t have enough pressure applied. The cause could be a failing heating lamp, a broken thermostat, or worn pressure rollers. The fuser is not getting hot enough to melt the toner plastic completely.
Repeating Marks or Lines
If you see a repeating smudge, dot, or line every few inches down a page, trace it to a roller. Often, this is a damaged or dirty section of the **heat roller or pressure roller**. A small piece of melted toner can stick to the roller and imprint on every page that passes through.
Paper Wrinkles or Creases
The fuser assembly must guide paper smoothly. If the rollers are misaligned, worn, or if there’s a foreign object inside, the paper can get crumpled under the intense heat and pressure. This is more common with thick paper or envelopes that don’t feed correctly.
Maintenance and the Life of Your Fuser
Good news: you don’t need to perform regular maintenance on the fuser yourself. It’s a sealed, internal unit. Its lifespan is measured in tens of thousands of pages. The printer will typically warn you when the fuser kit is near the end of its service life and needs replacement.
You can extend its life by using the correct paper type settings on your printer. Forcing thick cardstock through without selecting the right setting can strain the fuser. Also, always address paper jams immediately and gently, pulling paper in the direction of the paper path to avoid damaging the rollers.
Signs Your Fuser Needs Replacing
- Persistent smudging that doesn’t go away after cleaning.
- Repeated wrinkle or crease lines on every print.
- The printer displays a “Fuser Error” or “Replace Fuser Kit” message.
- Visible damage, like a torn fuser film or leaked grease.
Quick Checklist: Is Your Print Smudge-Free?
Use this simple list to verify your printer’s fuser is working correctly. Run a test page and check these points.
- The Rub Test: Gently rub a dark area of print with your finger. Does any toner come off? None should.
- The Visual Check: Look at the print under good light. Is the color or black uniform from edge to edge?
- The Touch Test: Feel the page. It should be warm but not scorching. The surface should feel smooth, not powdery.
- The Crinkle Test: Is the paper perfectly flat with no new wrinkles or creases that weren’t in the original sheet?
- The Repeat Offense Check: Are there any dots, lines, or marks that appear at regular intervals down the page?
Understanding this process demystifies your printer. That steady hum and warm output are signs of a precise, high-temperature engineering feat happening right on your desk. It’s what turns a cloud of dust into the reliable documents you use every day.
Conclusion
So, how does a laser printer fuse toner to paper? It all comes down to the fuser unit, which uses heat and pressure to melt toner particles and bond them permanently to the page. This process creates sharp, smudge-resistant prints that last for years, making laser printers a reliable choice for homes and offices. Understanding this helps you troubleshoot issues like smudging or wrinkling. If you notice poor print quality, check your fuser or consider replacing it when needed. Keep your printer maintained with the right paper settings, and it will deliver reliable documents every time.
Frequently Asked Questions
What happens if the fuser doesn’t get hot enough?
If the fuser doesn’t reach the proper temperature, the toner won’t melt and bond correctly. You’ll see smudging or ton
